Engineer from verified field conditions.

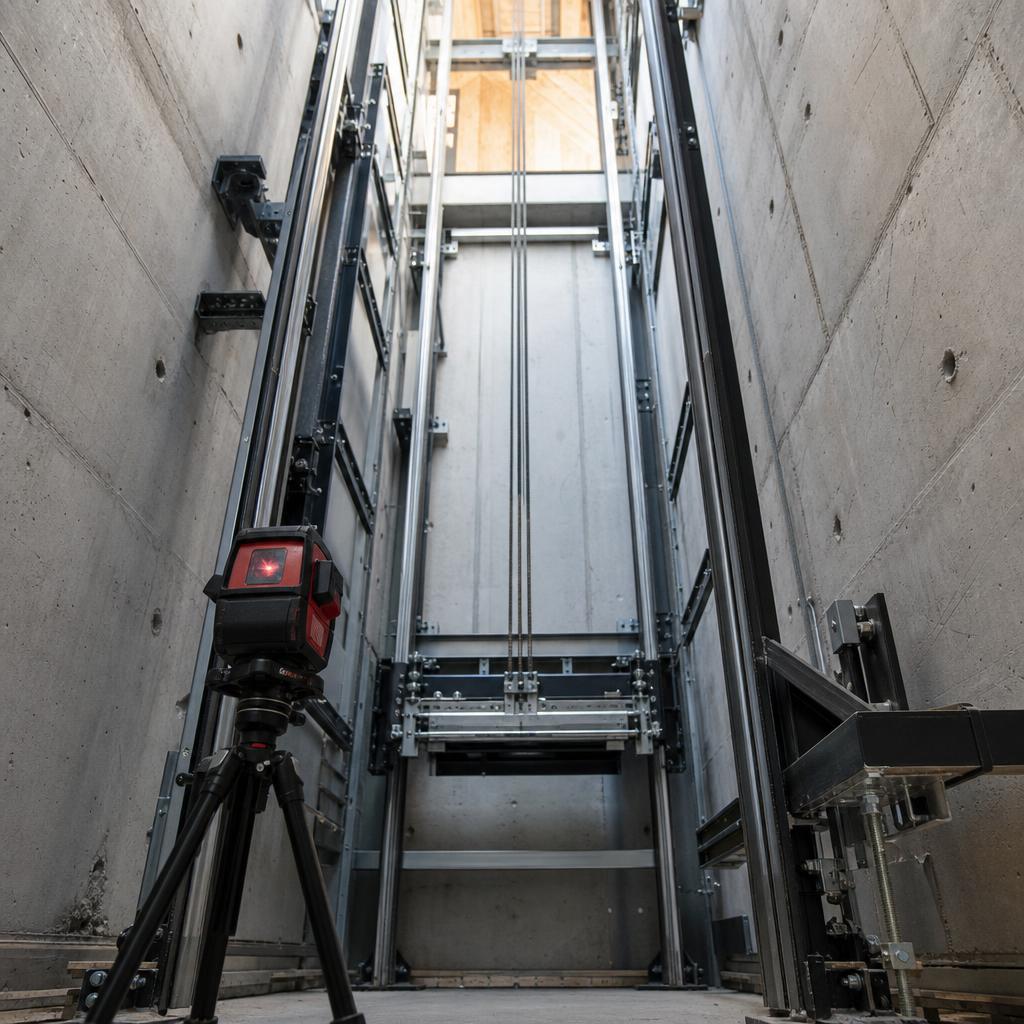

An elevator cab site survey verifies the installed dimensions, equipment interfaces, access constraints, and working conditions that engineering cannot safely infer from drawings. The survey should record how each value was obtained, pair critical conditions with labeled photographs, and flag anything unverified so the shop never fabricates against a guess.
Published
Architectural drawings communicate intended construction. They may predate field changes, omit existing elevator equipment, use nominal dimensions, or show interfaces that another trade installed differently. On a modernisation, the retained car frame, platform, rails, sill, operator, header, and fixture arrangement are physical constraints. The new interior has to fit those conditions, not the original intent.
Use drawings to prepare questions, not to fill blanks after the visit. Each fabrication-driving value needs a measured source, method, date, unit, orientation, and surveyor. Related dimensions should reconcile, including the clear opening with jambs and platform geometry with frame location.
The survey becomes an input to the elevator submittal and drawing approval process. Approval does not cure a weak field basis. If an interface remains unverified, the drawing should state the hold or assumption clearly enough that the responsible party can resolve it before release.
Review the scope, drawings, prior surveys, approved selections, and retained equipment. Pre-fill job and unit identifiers, but leave field values blank. Mark engineering interfaces so inaccessible conditions are escalated rather than omitted.
Define front, rear, left, and right from one stated viewing position. Identify the landing, entrance, platform, and reference elevation used for every measurement. Record the instrument and method. A dimension without orientation or a datum can be precise yet unusable.
Capture the hoistway, platform, frame, entrances, rails, sill, operator, header, ceiling zone, and fixture relationships before decorative surfaces. Cross-check related measurements. Record irregular geometry instead of averaging it away.
Take orientation, medium, and close views for each interface or defect. Record access, lobby conditions, power, storage, and work restrictions. Photographs support the record; they do not replace dimensions.
Check every required field, photo identifier, discrepancy, and unresolved condition with the survey form in hand. Confirm which areas were inaccessible and who controls access. A same-day completeness review is the last inexpensive opportunity to collect missing evidence.
Organize the record around engineering interfaces, not a loose list of room dimensions. Use the shop’s agreed measurement units consistently, identify the measurement points, and attach evidence where geometry or condition cannot be understood from one value.
| Survey field | Unit or evidence | Why the shop needs it |
|---|---|---|
| Clear hoistway and platform | Measured dimensions, datum, plan sketch, and orientation photos. | Establishes the available envelope and reveals offsets, out-of-square conditions, or conflicts with retained equipment. |
| Entrance opening and jambs | Clear width and height, returns, reveals, profiles, condition notes, and close photos. | Controls front interface, wall returns, transom treatment, trim, and installation fit. |
| Ceiling and headroom | Finished and structural reference heights plus photos of overhead equipment and obstructions. | Defines the usable ceiling zone and prevents conflicts among canopy, lighting, ventilation, and retained equipment. |
| Existing frame and platform | Modernisation dimensions, attachment locations, condition notes, level observations, and sketches. | Identifies what remains, where new work can attach, and which conditions require repair or engineering review. |
| Door operator and header | Equipment identity when visible, position measurements, clearances, and overall/detail photos. | Protects operating space and allows ceiling, entrance, and service-access interfaces to be coordinated. |
| Fixtures and devices | Location from stated datums, opening sizes, projection or depth, identity, and labeled photos. | Coordinates panel cutouts, backing, clearances, service access, and retained wiring routes. |
| Rails and related projections | Positions relative to platform and frame, projection notes, and orientation photos. | Confirms the actual boundary around retained running and structural equipment. |
| Sill and floor interface | Profile, level relationship, gaps, damage, substrate condition, and close photographs. | Controls floor build-up, edge treatment, entrance fit, and repair decisions before installation. |
| Delivery and working conditions | Route survey, door and corridor constraints, site rules, power, storage, hours, and contact confirmation. | Determines packaging, component size, handling, protection, tools, staging, and installation planning. |
Begin each area with an orientation image. Follow with medium views of the interface and close-ups of measurement points, labels, damage, obstructions, and unusual geometry. Place any scale in the condition’s plane and make it legible. Never treat photographic perspective as a measurement.
Tie every image to the job, unit, location, direction, subject, and survey date. Put its identifier beside the survey field and caption what it proves. Preserve originals. Unlabeled images force engineering to infer location and direction.
Walk the delivery route from unloading to the elevator. Record doors, corridors, turns, floor and lobby protection, staging limits, and secure storage. A cab that fits the platform may still be impractical to deliver if panel sizes, crates, or permitted routes were ignored.
Confirm power, temperature and moisture exposure, storage, working hours, occupied-area restrictions, and union or site rules. Name each source and pending answer. These conditions affect component breakdown, packaging, tools, crew coordination, and sequence. Confirm code-governed requirements against the governing code and the authority having jurisdiction.
The surveyor must understand cab interfaces, field measurement, and their authority limits. They need safe access and enough experience to recognize retained equipment, concealed conditions, damage, and issues requiring another trade or engineering judgment.
Establish qualification through relevant field experience, training on the survey standard, safety authorization, instrument competence, and complete records. Surveyors need not resolve every engineering question, but must recognize it, preserve evidence, and assign follow-up.
Before release, a second competent person should review completeness, cross-check related dimensions, and compare field conditions with the intended scope. The job record should connect the survey, contacts, files, timeline, drawing revisions, and decisions. See how those controls fit within elevator cab project management software.
Use explicit states: measured, observed, drawing-derived, reported by others, and unverified. For anything not measured, record its source and reason. Name blocked access or concealed surfaces. Do not convert an unreliable reading into a field dimension.
An unresolved item needs an owner, required resolution date, planned verification method, and downstream work on hold. Engineering may define a bounded assumption, but that assumption must be visible and approved by the responsible party. Do not populate a required field with zero, copy a nearby dimension, or use the architectural value without attribution merely to make the form appear complete.
When later evidence changes the basis, retain the prior survey and issue a controlled correction. The same discipline used for elevator cab shop drawing revision control should apply: one current record, preserved superseded history, named approval, and a clear stop on work governed by disputed information.
A wrong figure propagates through drawings, quantities, purchased components, cut parts, packaging, and installation planning. Contain it by identifying every drawing, decision, vendor request, and item that used the value. Stop affected work clearly.
Obtain qualified field verification. Preserve the original, correction, evidence, author, date, and reason. Engineering must assess fit and safety before work resumes. Commercial and schedule effects belong in a formal change decision, not a silent drawing edit.
Close the loop by reviewing why the control failed. The cause may be the wrong datum, inaccessible equipment, transcription, inconsistent units, unlabeled photographs, missing peer review, or an assumption treated as measured. Improve the form or release gate around that mechanism. Blaming the surveyor without correcting the process leaves the same failure available on the next job.
Record clear hoistway and platform dimensions, entrance opening and jamb conditions, ceiling height and available headroom, car frame and platform details on a modernisation, door operator and header, fixture locations, rail positions, and sill condition. Add labeled photographs, measurement methods, access constraints, power and storage conditions, working-hour limits, and every unresolved field condition.
Architectural drawings describe design intent and may not reflect installed work, later modifications, tolerances, or the existing equipment retained during a modernisation. Cab engineering needs verified field conditions at the interfaces. Use the drawings to plan the survey and identify discrepancies, but do not substitute their dimensions for measured reality unless engineering explicitly accepts that basis.
Use a person who can access the equipment safely, understands elevator and cab interfaces, can recognize what is concealed or unsafe to measure, and can document methods and uncertainty. Qualification is demonstrated by relevant field experience, safety authorization, familiarity with the survey form, and the ability to escalate conditions requiring engineering or trade-specific review.
Give each photograph a unique identifier tied to the job, unit, landing or cab area, viewing direction, subject, and survey date. Add a short caption stating what the image proves. Include an orientation image before close-ups, place a readable scale in detail photographs where appropriate, and never rely on the file’s automatic timestamp or camera sequence.
Mark it unverified rather than estimating. State why it could not be measured, what obstruction or access limit applies, the method attempted, any bounded observation that is still reliable, who must resolve it, and the required follow-up date. Engineering can then hold the affected interface, request access, or establish an explicit assumption with an approval owner.
Record the delivery route, door and corridor restrictions, elevator lobby protection, unloading and staging conditions, available power, temperature and moisture exposure, secure storage, permitted working hours, occupied-building restrictions, and applicable union or site rules. These conditions may change packaging, panelization, tools, crew planning, protection, and installation sequence even when every cab dimension is correct.
Stop affected release, purchasing, or fabrication work and identify every item governed by the figure. Verify the field condition, preserve the original record, issue a controlled correction, and have engineering assess fit, safety, cost, and schedule effects. If released scope changes, route it through the project’s revision and change-order process rather than editing the survey silently.
